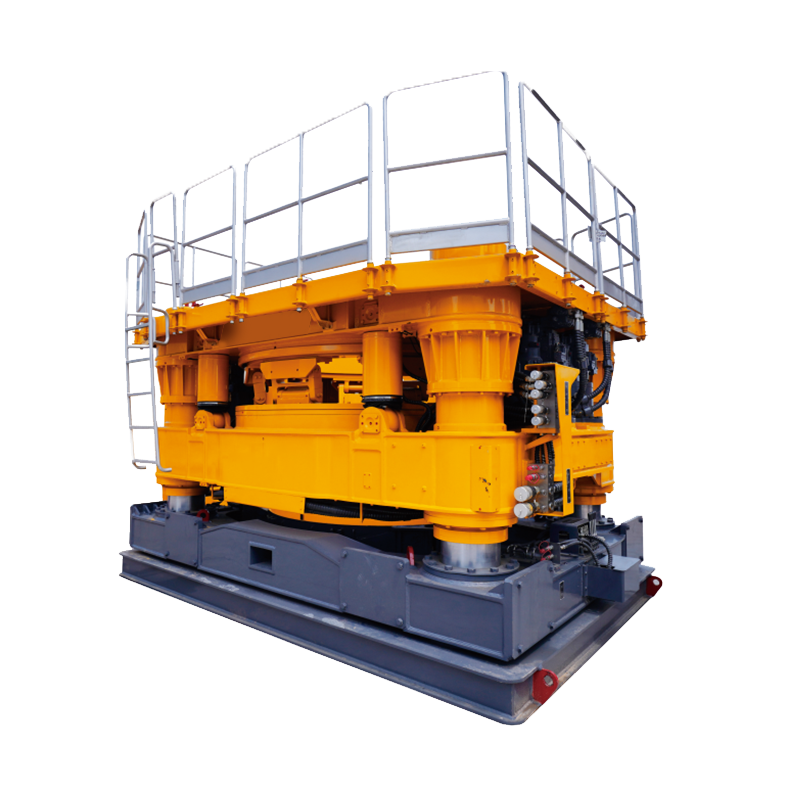

XRT3200 casing rotator is a new type drilling rig with the integration of full hydraulic power and transmission, and the combination control of machine, power and fluid.
It is a new environmental and highly efficient drilling technology. In recent years, it is widely used in the projects such as urban subway, secant piles of deep foundation pit enclosure, clearance of waste piles (underground obstructions), high-speed railway, road and bridge, and urban construction piles, as well as the reinforcement of reservoir dam.
| Item | Unit | Parameter |
| Pile diameter | mm | 2000-3200 |
| Maximum rotary torque | kN.m | 905(Instant 10450) |
| Maximum pull force | kN | 7675(Instant 8498) |
| Maximum rotary speed | r/min | 2.17 |
| Maximum push force | kN | 1000 |
| Engine | – | QSZ13-C550+QSL9-C325 |
| Engine power | kw | 410+242 |
| Emission standard | – | CN Ⅲ |
| Operating weight | t | 16 |
