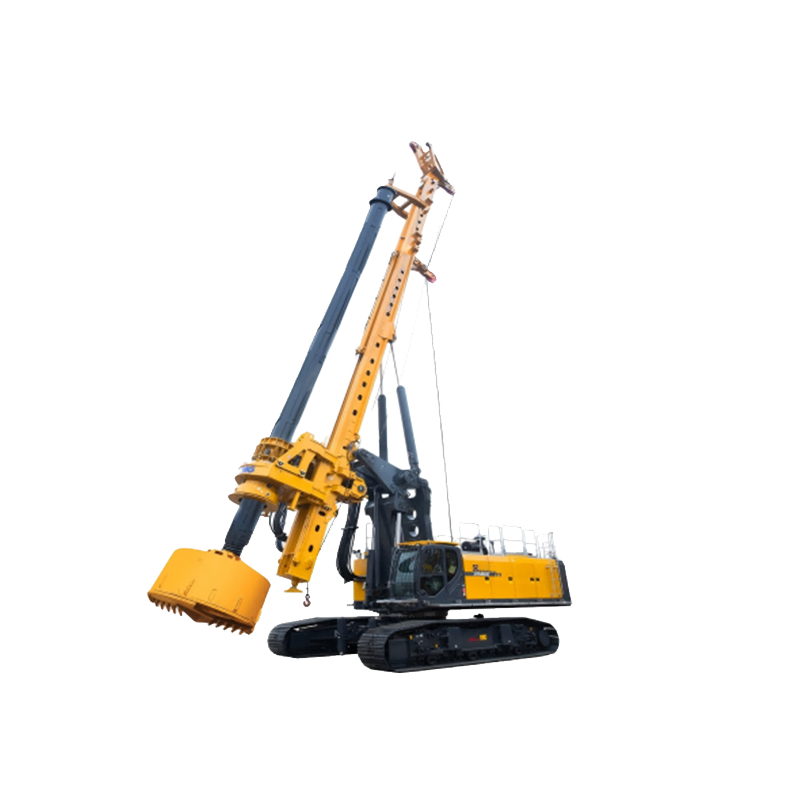

The telescopic crawler chassis with swing legs is adopted to meet the stability of large tonnage drilling rig and the convenience of disassembly and transportation,itis equipped with large diameter slewing bearing with stronger anti overturning ability;
The power head adopts vertical pin shaft connection type power box and bracket, which has high reliability and is convenient to disassemble;the power head has ommon mode,rock entry mode,medium speed rock entry mode and energy-saving mode,and users can select corresponding modes according to different geological conditions,which improves construction efficiency and reduces fuel consumption; The main winch adopts single row rope,the service life of steel wire rope is 2~4 times longer than that of multi-layer rope,and the use cost is lower;
The main and auxiliary hydraulic systems adopt load sensitive control technology, with fast response and good control performance,the double overhead cooling system is adopted,which can intelligently adjust the cooling capacity according to the temperature,with strong cooling capacity,energy saving and noise reduction; Equipped with Cummins 15L electronic control turbocharged engine,it has strong power,low fuel consumption,convenient and fast service,and adopts decentralized ndependent cooling system,with strong cooling capacity and low noise;
The intelligent control system realizes the functions of automatic adjustment and display ofdrilling mast verticality,automatic spin-off(adjustable frequency),cruise control,stepless pressure adjustment,bottom touch protection,etc,it adopts bus panel design to prevent misoperation,it is equipped with 12 inch touch screen display and electric control handle to achieve better control performance.
| Item | Unit | Parameter |
| Max. drilling diameter | mm | Ф3000 (Remove mast I) |
| Max. drilling depth | m | 72/110 |
| Engine Brand | – | Cummins |
| Engine Model | – | QSX15-C600 |
| Engine Ratedpower | kW | 447 |
| Rotary drive Rated output torque | kNm | 490 |
| Rotary drive Working speed | r/min | 46198 |
| Crowd cylinder Max crowd force | kN | 370 |
| Crowd cylinder Max lifting force | kN | 400 |
| Crowd cylinder Maxstroke | m | 6 |
| Main winch Max.lifting force | kN | 480 |
| Main winch Max.line speed | m/min | 70 |
| Main winch Wire ropediameter | mm | Ф42 |
| Auxiliary winch Max.lifting force | kN | 110 |
| Auxiliary winch Max.line speed | m/min | 50 |
| Auxiliary winch Wire rope diameter | mm | Ф20 |
| Mast indination Lateral/Forward/ Backward | 。 | ±4/5/90 |
| Chassis Max span of track | mm | 3700-5100 |
| Chassis Track shoe width | mm | 900 |
| Chassis Track length | mm | 6575 |
| Chassis Max.gradeability | % | 35 |
| Chassis Max traveling speed | km/h | 1 |
| Hydraulic system Working pressure | MPa | 33 |
| Hydraulic system Operating weight | t | 142 |
| Dimensions Working state | mm | 11470x5100x28270 |
| Dimensions Transport state | mm | 19156x3700x4908 |
