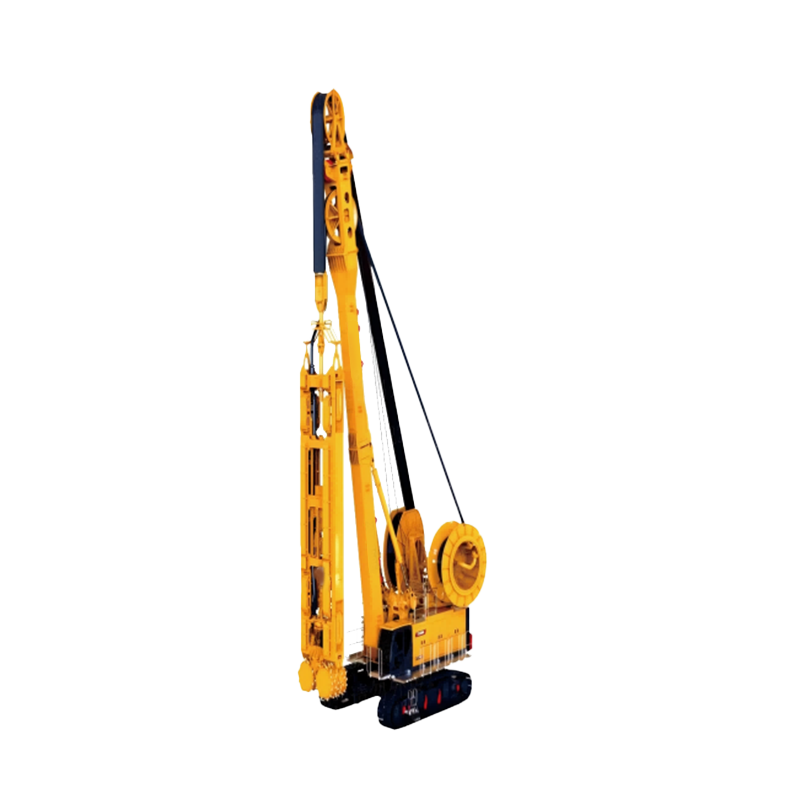

Trench Cutter XTC150E

描述

Dual power system is efficient and enery-saving:
· By diesel-electric dual power system, it can use electric power with  lower noise and more than 40% fuel saving, or use fuel to aviod impact on construction when there is no electric power;
· Modular large diameter segmented hydraulic tubes and mud hoses make capacity improvement convenient.
Strong construction capacity & wide operating range:
· Extremely simple cutter frame with full-stroke guide is reliable and beautiful;
· Two-dimensional trenching display+high-precision inclination angle+12 sets of deviation correction device ensure high trenching accuracy;
· Unique large-capacity compensator makes it safe and reliable in deep trench operation;
· Trenching depth can be upgraded to 150m, and special depths can be customized.
Reliable reduction box & high construction efficiency:
· The machine uses newly developed cutter wheel low-speed drive assembly, with high efficiency and less heat generation. It can also use cutter wheels and reducers commonly used for XTC120;
· Special motor, power unit and rubber damping ring are cancelled, so the rock breaking effect is better and the maintenance cost is lower;
· Equipped with the second-generation gravel pump and added with protective net.
Diversified options & highly adaptable in construction
· Optional cutter frame rotating device to meet special operation requirements;
· Optional low headroom configuration to meet construction needs under height restrictions.
