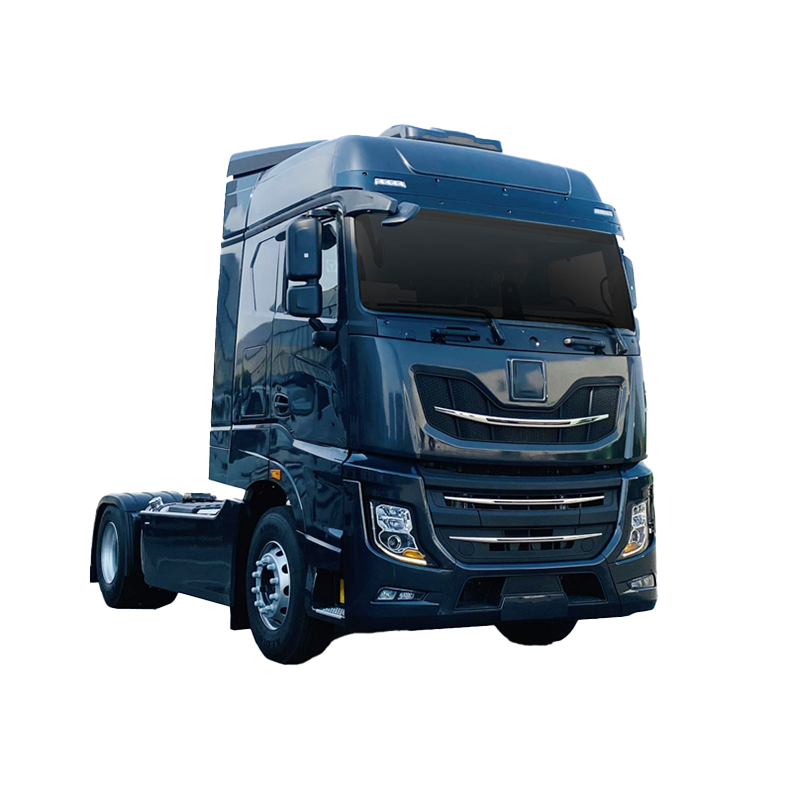

560 hhp engine with 16-gear AMT, with strong PTO.XGA4185D5WA Tractor is highly cost efective by adopting classic combination of Yuchai 560hp engine + FASTRE 16-gear AMT, not only having strong traction force, but also being suitable for all complicated conditions of transpor as well, easy driving uphill/downhill and conve-nient aftermarket serices and accessories available. XGA4185D5WA Tractor has used 1050L extra-large double fuel tank to efectively improve endurance; and the solid body structure and the air suspension four-airbag chassis design with high bearing capacity enable the tractor to keep running smoothly while carring a large quantity of goods, with excellent bearing capacity and stability; moreover, the transporation task can be completed safely and efciently, whether on rugged mountain roads or fat express-ways.
| Item | Unit | Parameter |
| Drive Type | – | 4×2 |
| Kerb Mass | kg | 7370 |
| GVW | kg | 45000 |
| Max. Speed | km/h | 100 |
| Min. Turning Diameter | m | 14.4 |
| Grade Ability | – | ≥30% |
| Fuel Tank | L | 800 |
| Dimension | mm | 6425x2550x3970 |
| Wheelbase | mm | 3900 |
| Min. Clearance | mm | 260 |
| Approach Angle | – | 17° |
| Departure Angle | – | 32° |
| Cabin Model | – | XG2-X |
| Left/Right Driving | – | LHD |
| AC | – | Standard |
| Person Allowed in | – | 2 |
| Engine Model | – | YC6K1356-50 |
| Emission Standard | – | EUR V |
| Displacement | L | 12.939 |
| Output Power | kw | 412 |
| Max Torque Speed | km/h | 2500/(1100-1500)N.M |
| Transmission Model | – | F16JZ26A |
| PTO | – | QH50 |
| Front Axle Model | – | 7.15T |
| Rear Axle Model | – | 13T |
| Main Reducer Ratio | – | 3.083 |
| Rim | – | 22.5×9.00 |
| Tire | – | 315/80R22.5 |
