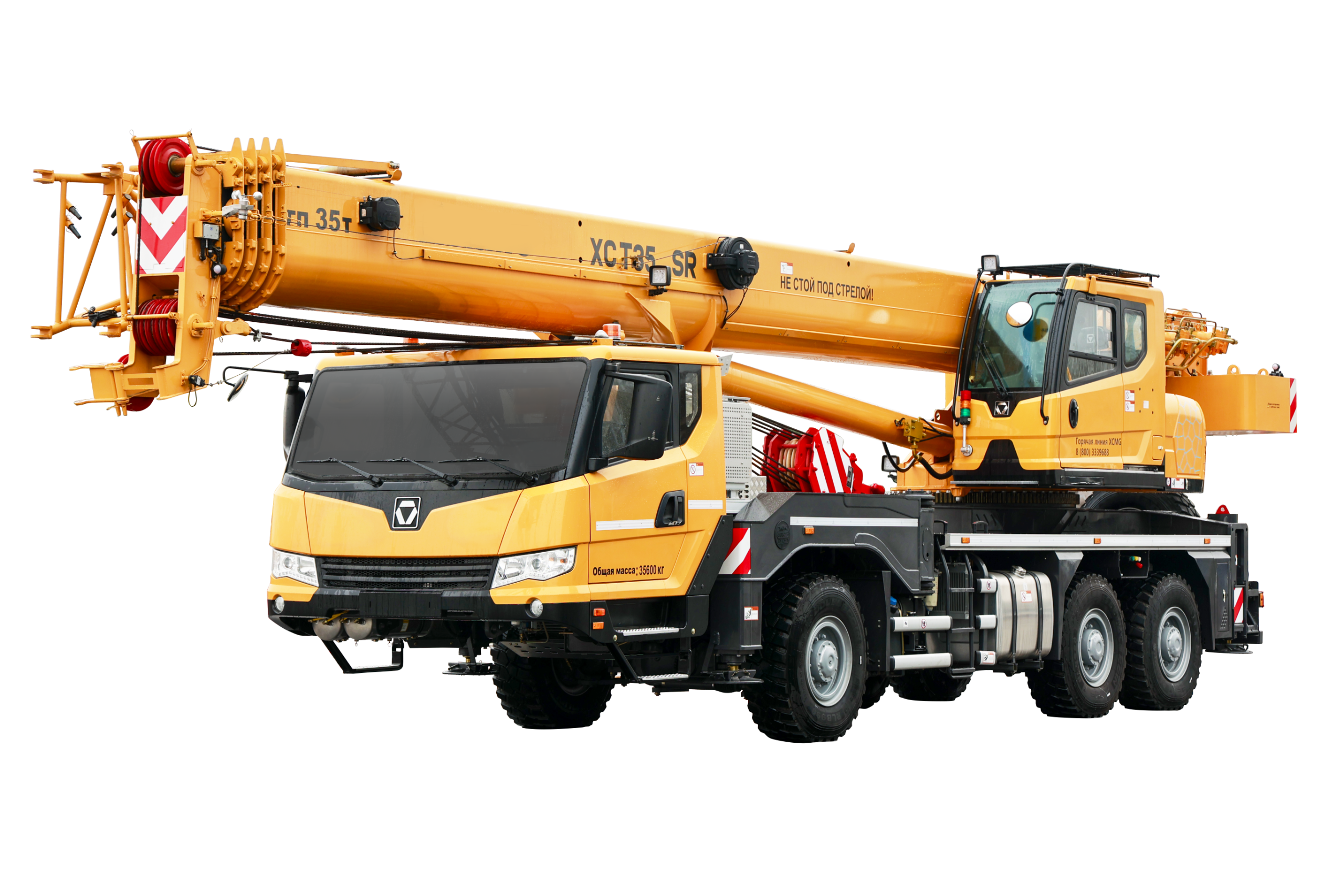

XCT35_SR is a 3-axle 35-ton truck crane with high adaptability to the job site and a wide range of acceptable operating conditions.
It features a 44-meter, 5-section main boom, an 8.3-meter fixed boom, a fixed 5.5-ton counterweight, a V-shaped diesel engine paired with a 9-speed gearbox, 3-axle type K outriggers, and all-wheel drive.
| Item | Unit | Parameter |
| Max. load capacity | t | 25 |
| Telescopic boom | m | 33.5 |
| Number of axles | – | 3 |
| Max. hoist height | m | 41.6 |
| Max. load moment | kN.m | 941 |
| Drive engine model | – | SC7H260Q3 |
| Drive engine power | kw | 192 |
| Drive/Steering | – | 4×2 |
| Driving speed | km/h | 85 |
| Dead Weight in Travel State | kg | 24510 |
| Dimensions | mm | 12207×2500×3450 |
| Emission standard | – | China III |
