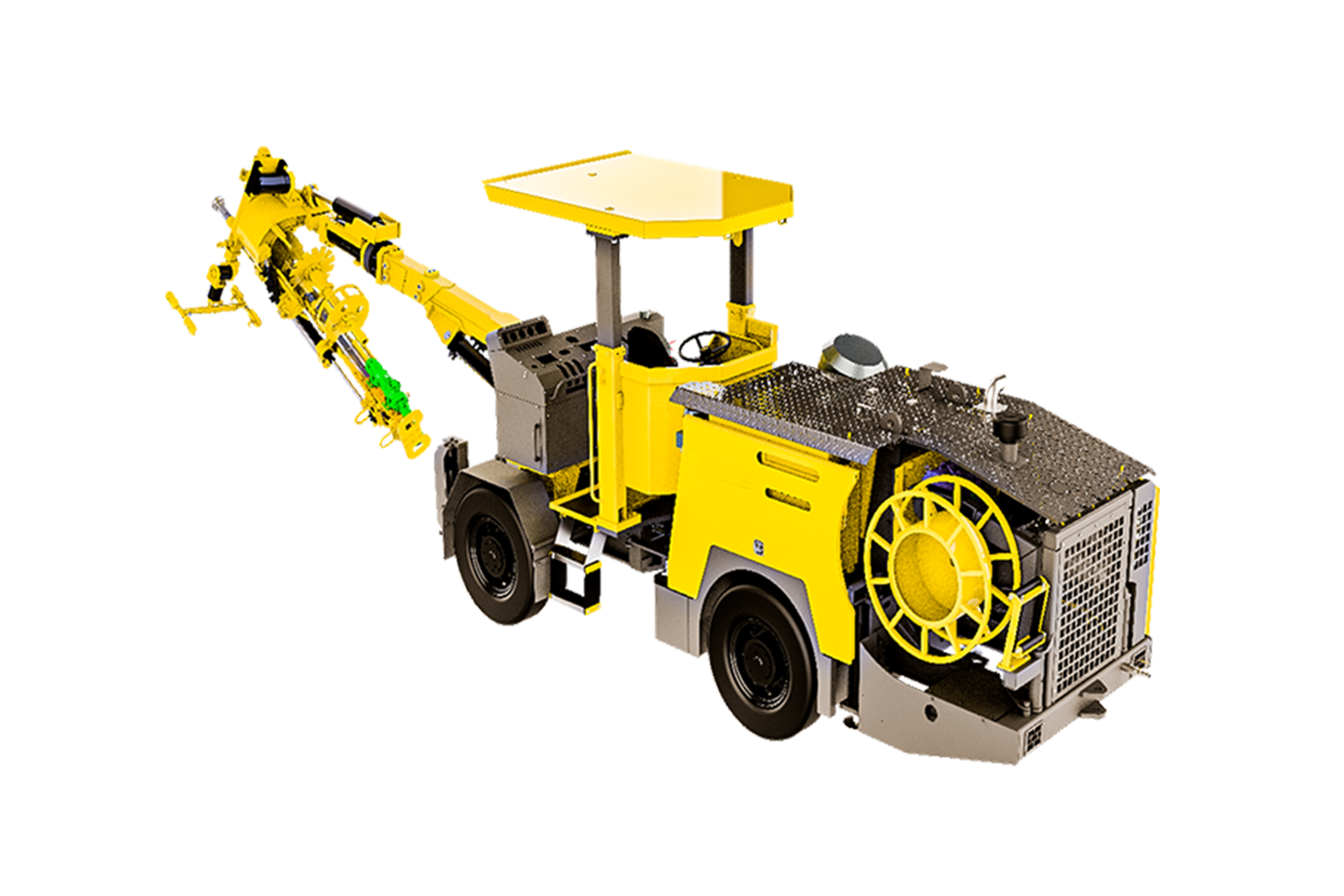

XUB125 is mainly suitable for the bolting operations in metal mines (such as underground gold mines, iron ores, and copper mines), non-metal mines (such as gypsum mines and phosphorite), hydropower projects, small tunnels, inclined shafts, culverts, etc;
The equipment adopts a hydrostatic transmission system, with a compact structure and flexible maneuverability;
The whole machine can be divided into several modules, which is convenient for access to the mine through cages;
The construction of the resin anchor bolt and the slit wedge tubing bolt can be completed mechanically in the whole process, and a mesh hanging gripper is optional.
| Item | Unit | Parameter |
| Rated bucket capacity | m³ | 10 |
| Rated loading capacity | t | 21 |
| Maximum breakout force | kN | 354 |
| Maximum traction force | kN | 431 |
| Engine | / | TAD1384VE |
| Emission standard | / | EU V |
| Ratoed power | kW | 375 |
| Maximum traveling speed | km/h | 23.5 |
| Minimum turning radius | inner side/outer side | 3750/7990 |
| Transport dimensions | LxW×H | 12520×3380×3000 |
| Total weight | t | 60±0.5 |
