| Chassis |
Surface Mount |
| Mounting Type |
Surface Mount |
| Package/Case |

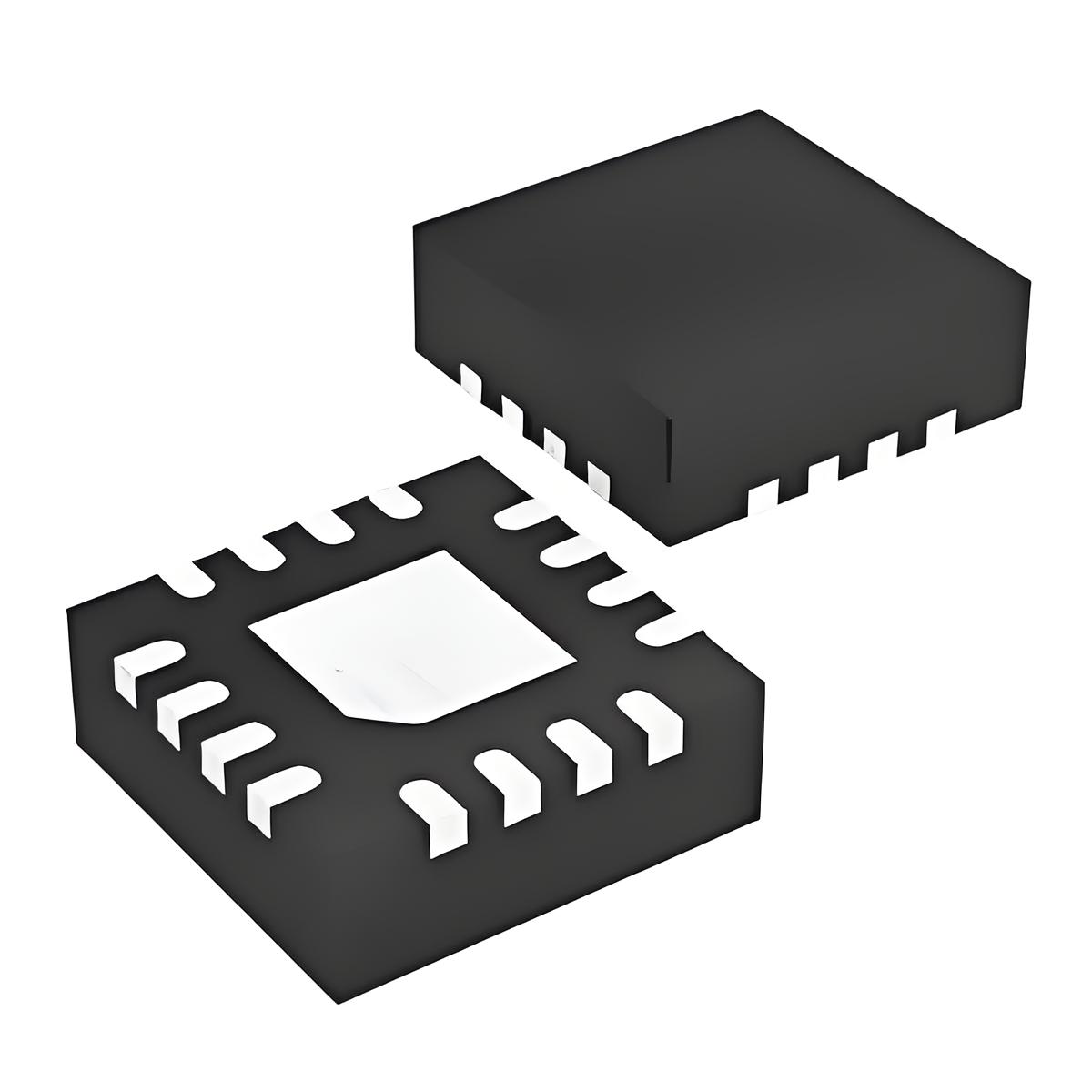

16-VFQFN Exposed Pad |
| Number of Pins |
16 |
| Packaging |
Tape & Reel (TR) |
| Published |
2012 |
| Part Status |
Obsolete |
| Moisture Sensitivity Level (MSL) |
1 (Unlimited) |
| Number of Terminals |
16 |
| Maximum Operating Temperature |
85°C |
| Minimum Operating Temperature |
-10°C |
| HTS Code |
8542.39.00.01 |
| Voltage – Supply |
3V~3.6V |
| Terminal Position |
QUAD |
| Number of Functions |
1 |
| Supply Voltage |
3.3V |
| Terminal Pitch |
0.5mm |
| Frequency |
4.9GHz~5.9GHz |
| Pin Count |
16 |
| Operating Supply Voltage |
3.3V |
| Temperature Grade |
OTHER |
| Test Frequency |
5.4GHz |
| Supply Current |
195mA |
| Gain |
28dB |
| Communication IC Type |
Telecommunication Circuit |
| RF Type |
IEEE 802.11a, WLAN |
| P1dB |
25dBm |
| Length |
3mm |
| Seat Height (Max.) |
1mm |
| Width |
3mm |
| Radiation Hardening |
None |
| RoHS Status |
ROHS3 Compliant |
